KingDraw Tutorial- The Use of Common Chemical Bond Tools

Drawing any chemical structures, you cannot do without a variety of chemical bonds. KingDraw build a rich drawing element. How to use the various keys to draw the required structure? Today, we come to understand the drawing skills of common chemical bond tools firstly.

Common Chemical Bond

In the KingDraw APP, the commonly used structural drawing tools are focused on the lower functional area of ​​the drawing board, and the toolbar supports sliding and hiding from left to right.

Basic chemical bond such as single bond, double bond, triple bond, wedged bonds, and bold bond is there.

In addition to providing basic bond tools, KingDraw also provides multiple bonds tools such as double dashed bond, aromatic bond, double bond, etc. Press and hold the [Double Bonds] tool to view the selection.

Chemical Bond Tool Tips

Basic Drawing Method

Select the desired chemical bond type in the lower ribbon and click anywhere on the drawing board to display the corresponding chemical bond. If you still need to continue adding, just click at the end of the bond. Press and hold to rotate the bond angle.

Connecting Multiple Structure

If you need to connect two parts of the structure, just press and hold the bond you want to add and drag, the added bond will automatically extend, connecting the two parts structure.

In addition, you can also use the [Marquee Tool], click on one end of the button to drag and connect to the desired location.

When you draw a structure using various bonds, the system defaults to a simple hydrocarbon.

Change Bond Angle and Bond Length

After drawing various chemical bonds, if you need to change the bond angle and bond length, you can use the [Marquee Tool] to operate. After selecting the box selection tool, click on one end of the key to be adjusted to rotate or stretch.

Single and Double Bond Switching

Using a single-click on an existing single bond, you can switch a single button to a double button; if you click on an existing double button, you can switch the double button to a single button.

Change the Double Bond Display Style

Double-click on the existing double-key to switch between the two-button display mode. There are three display modes in total.

KingDraw Tutorial-Introduction of Color Tool

KingDraw Tutorial 丨 Powerful Gesture Drawing Tool, Do You Get It?

The Gesture drawing tool is one of the highlights of KingDraw APP. The gesture drawing tool can quickly draw the chemical structure formula, effectively improving the efficiency of structural drawing.

It's a pity that such a powerful tool won't work. Today, we will give you a detailed introduction to the use of gesture drawing tools.

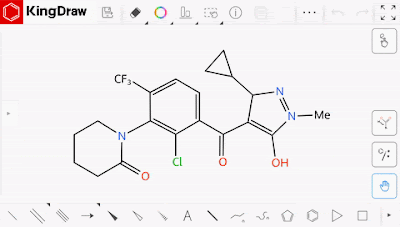

How to Enter Gesture Drawing Mode

Open the drawing interface of KingDraw APP, click on the [gesture drawing tool] in the upper right corner, and you can enter the gesture drawing mode.

How to Graw With Gestures

The Gesture Drawing tool currently supports more than a dozen drawing gestures, allowing you to quickly draw the desired structure.

Don't worry about so many gestures you can't remember?

Just long press the [gesture drawing tool] button.

You can view the gesture checklist!

Common Operation Gesture：

1. Two-finger translation: you can move the artboard.

2. Two-finger pinch: you can zoom the artboard.

3. Single-finger double-click: can be positioned in the middle of the artboard and restored zoom.

4. Quickly draw on the right side of the artboard: you can open the periodic table of contents.

5. Quickly draw on the right side of the artboard: you can open the common group directory.

KingDraw Tutorials-Batch Operation Function

KingDraw Tutotial-Cloud File List Function of KingDraw

KingDraw tutorial 丨Grouping Tags to Manage Your Structure

If you are a person who pursue high efficiency and smooth operation

Then there is something you have hated for a long time.

---Find the desired file in a messy file heap

We introduced it to everyone how to quickly find structured files in the KingDraw App. Among them, the [Grouping Tags] function has arisen long discussion.

Many people are eager to know how to use this tool.

Today, we will give you a detailed introduction about How to use Grouping Tags?

What is the "Grouping Tags"

The Group Tags function in the KingDraw APP helps users to more carefully manage structured files, and can quickly query and locate the corresponding files by filtering labels.

How to manage Group Tags

Go to the main interface of KingDraw and click the “Management” button to enter the label management interface. Here, users can add, modify, and delete group tags.

Add group tags

After entering the “Management” interface, click “create” (no tags available) or “+” button at the top right to enter the Create Tags” interface.

Enter a tag name on the [Create ] interface, click [Add] to enter the Add Group Files interface. After the selection is completed, click the “Confirm” button in the upper right corner to return to the “Create” interface, and click the “Save” button in the upper right corner to complete the new tags operation.

• The addition of group files supports search and multiple selection.

• In the [Create ] interface, the tag name cannot be empty and cannot be duplicated with an existing tags.

• The group file can be empty.

Modify/delete group tags

In the "Management" interface. Click the taps for the content you want to modify and go to Edit Tags.

Click the "Add" button to enter the "Add Group Files" interface, you can add a group file.

Click the "Delete" button to change the group file to a deleting state. After deleting the group file, click the "Finish" button to save the delete operation.

After the modification is completed, click the “Save” button in the upper right corner of “Edit ” to complete the tag modification.

• In the New Tag interface, the tag name cannot be empty and cannot be duplicated with an existing tag.

• The group file can be empty.

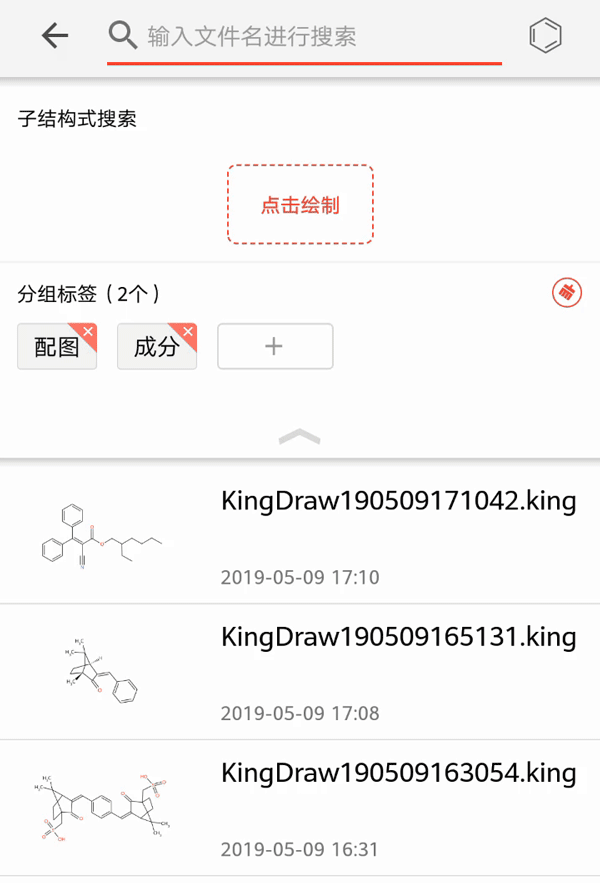

How to query a file by grouping tags

Go to the KingDraw main interface, drop down the list page or click on “Group Tag” and the “+” button will appear. Click "+" to enter the "Add Filter Tags" interface.

In the "More Tags", select the eligible tags into the "Selected Tags". Click the "Done" button and the selected grouped file will be displayed in the list interface.

In the "Add Filter Tags" interface, click the label in "More Tags", you can put the tag into the "Selected Tags", click the tag in "Selected Tags", you can put the tag back to "More Tags" in. The KingDraw App allows multiple tags to be selected at the same time, and the system takes the union of multiple tags as a filter.

In the "Search Results" screen, click the tag in the grouping tags to clear the filter criteria for that tag. Click the "+" button to continue adding filter criteria. Click the "Clear" button and the filter will be cleared.

KingDraw Tutotial-File List Function (Chinese Version)

KingDraw Tutorial丨How to use the color tool?

KingDraw Tutorial丨How to use the color tool?

Today, we will introduce how to use the color tools in KingDraw.

We received some questions about: How to change the color of the elements? How to change the color of the structure? Why it is not working when clicking the color tool?

In fact, the [color tool] is very simple to use. Combined with the [Marquee] tool, it is very easy to change color anywhere you want. Let's look at the specific operation.

Introduction of Color Tools

The color tool is in the upper part of the KingDraw drawing board. Long press on the Color Tool. The KingDraw APP gives you 7 default colors and supports custom color settings.

How to Change Color

Let's take the following structure as an example to see how it worked. First, use the Marquee tool to select the structure you want to change color.When the structure is hard to select, we can press and hold the lasso tool. Once selected, long press "Color Tools", click on the desired color, then the selected part will change. And it has also become the default color of our drawing board. The next time you use the same color, just pick the section and click the color tool , then complete the color change.

If you need to use a different color, you will need to long press and choose again.

Color tools can not only change the color of a structure, it can also change elements, text, arrows, parentheses, flowcharts, etc., as long as they are selected.

How to Customize Color

Custom colors can select colors manually. Or you can set RGB directly here to select the colors.

Today’s function introduction is all above. If you have more questions, please feel free to leave us a message.

KingDraw tutorial 丨 How to set up the drawing environment?

在绘制结构之前，我们首先需要创建适合您需求的绘制环境，例如选择绘制模板，调整键长，键角度以及是否启用辅助功能。今天我们来看看如何在KingDraw APP中设置绘图参数。

如何进行图纸设置

在KingDraw中，有两种方法可以进行图形设置：

系统的图纸设置

打开KingDraw APP，单击左上角→[设置]→[图形设置]，进入图形设置页面。修改后的图形设置将应用于所有新创建的文件。

单个文件的图形设置

在绘图板界面上，单击上方功能区的[···]，然后选择[设置]，进入绘图设置界面。修改后的图形设置将应用于当前文件。

图纸设置简介

在绘图设置界面中，用户可以根据自己的需要选择合适的绘图模板，并打开/关闭验证功能和放大镜功能。设置完成后，单击[保存]按钮以保存图形设置。

工程图模板

KingDraw APP为您提供3套图形模板：KingDraw文档，ACS文档1996，用户定义文档。

The [KingDraw Document] and [ACS Document 1996] drawing styles are system defaults and cannot be modified. If you need to set your own drawing style, you can select [User-defined Document]. After the setting is completed, click the "Save" button to save the drawing settings.

In the drawing panel, you can also quickly switch between the ACS Document 1996 drawing mode by clicking the [96] button in the upper ribbon.

In the [User-defined Document] mode, the contents that can be set include:

Category	Name	Limits
Bonds	Fixed Length	0.2~5cm
	Spacing	0~100% of length
	Line Width	0.01~0.5cm
	Bold Width	0.01~0.5cm
	Margin Width	0~0.25cm*Fixed Length
	Hash Spacing	0cm~Fixed Length
Chains	Angle	0~180°
Atom Lables	Font	Arial、Times New Roman、Symbol
	Style	常规，粗体，斜体，粗体斜体
	尺寸	5〜36
文字字幕	字形	Arial ，Times New Roman，Symbol
	样式	常规，粗体，斜体，粗体斜体

校准功能

开启验证功能后，系统将检查结构图的正确性，红色框提示验证结果错误的地方。

放大镜功能

打开放大镜功能时，在绘图面板中绘制结构时，绘图区域会在左上角部分放大，以方便绘制细节。

KingDraw Tutotial-How to Open the New File and Shift the Preview Mode

KingDraw Tutotial-File Searching Function Chinese Ver

KingDraw Tutotial-Introduce to My File Function Chinese Ver.

How to Use the Free Cloud Management File In the KingDraw?

For chemists who often bury themselves in scientific research, experimentation, and dealing with various structural and data every day, the most feared thing may be "file loss".

KingDraw provides you with free cloud storage function, which can upload local files to the cloud for saving, which can effectively prevent file loss, and can also quickly download files from other devices for editing through account synchronization.

Today we will give you a detailed introduction to how to save files using the cloud -

01 How to open your own cloud

Before uploading a file, you first need to register for a KingDraw account. After opening the KingDraw App, click the setting button in the upper left corner and click the “Login” button in the menu bar of the main interface to enter the “Login” interface.



Select the country or region code, enter the phone number, and click Next. New users will enter the "Registration" interface. The platform will send a verification code text message to the phone number you entered. Enter the verification code you received and set the password. After the setting is completed, click “Register” to complete the registration.

Once you've successfully registered, you're ready to use the cloud storage feature.

02 How to upload files to the cloud

• Single file upload

Long press on the file in the local list will pop up the menu, select "Upload to the cloud", a confirmation prompt will pop up, click the "confirm" button to upload the file.

• Batch file upload

In the "My Files" interface, click the " " button in the upper right corner and select the bulk operation, you can upload multiple files at the same time.



If the file has been uploaded to the cloud and uploaded again, an upload prompt will pop up. Clicking the "Keep Both" button will upload the file to the cloud without overwriting the existing file. Clicking on the "Replace" button will upload the file to the cloud and overwrite the existing file.



03 How to manage cloud file?

• Local management

In the "My Files" interface, click "Cloud" to view the list of files on it. Long press the file, you can select the function of "Download to Local", "Rename", "Delete". Click "Download to Local" to download the file to the local list.



If the file already exists in "Local", a download prompt will pop up when downloading. Clicking the "Keep Both" button will download the file to the local but not overwrite the existing file. Clicking on the "Replace" button will download the file locally and overwrite the existing file.



• Multi-end management

Once the file is uploaded to the cloud, you can log in to the KingDraw account without being restricted by the device. You can download and edit the file at any time using any device.

You can open the KingDraw Windows PC and go to Cloud File Management by clicking the "Cloud" button in the toolbar above.



You can also log in to http://cloud.kingdraw.cn to log in and manage it.

KingDraw Basic Setting Chinese Version

KingDraw Tutotial- Feedback And Message Center Function Introduction

KingDraw Sign Up And Log In

KingDraw structured search, most people do not know!

KingDraw structured search, most people do not know!

As a chemist, drawing a chemical structure is almost a daily must. Over time, a large number of structured files will be stored. Sometimes, you may spend most of the day, just looking for a file, which is quite burden when you are in a hurry.

How to easily find the file you want in the KingDraw App? Come on and follow us!

You can quickly query and navigate to saved files by clicking the "Search" button above the main interface. We have provided you with the following three ways to search for structure ：

01 Search by file name

Click the "Search" button to enter the "Search" interface. After entering the file name in the search box, click the "confirm" button. The structure file that meets the search criteria will be displayed in the list box.

02 Search by substructure itself

Click the "Tap To Draw" button to enter the drawing board and draw the structure you need. Click the "Done" button in the upper left corner and the system will display the file containing the drawing structure in the list box.

In the " Draw Board" interface, click the "Historical " button to directly find the structure that has been searched before.

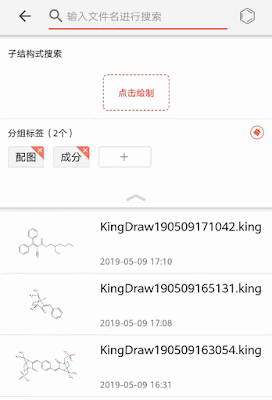

03 Search by group label

Click the "Tags" button to enter the "Add Filter Tags" interface. In "More Tags", select the tag you want to use as a filter and place it in the "Selected Tags". Click the "Done" button and the selected grouped file will be displayed in the list box.

In the "Add Filter Label" interface, click the label in "More Labels", you can put the label into the "Selected Label", click the label in "Selected Label", you can put the label back to "More Labels" in. The KingDraw App allows multiple tags to be selected at the same time, and the system takes the union of multiple tags as a filter.

In the "Search Results" screen, click the tab in the grouping tab to clear the filter criteria for that label. Click the "+" button to continue adding filter criteria. Click the "Clear" button and the filter will be cleared.

Introduction to the KingDraw App Drawing Board

The KingDraw App is the world's first, professional mobile chemical structure editor. Powerful built with rich chemical drawing elements, KingDraw can greatly improve the speed and accuracy of drawing chemical structures. What’s more, all the services are free now.

For many chemists who are new to KingDraw, it may be a little unfamiliar to see so many features when opening the drawing board. Today we will introduce in detail the various functions on the sketchpad, you will find that KingDraw is really easy~~

KingDraw App Drawing Board Overview



Open the KingDraw App, click the plus button to create a new file, and you'll see the drawing board. Here are all the functions to draw the chemical structure. The drawing board is divided into four functional areas: up, down, left, and right. Next, we will show you the functions of each area in detail.

Upper functional area - common operating tool area



The upper toolbar of KingDraw App are mainly includes common functions used in drawing.

1. Return: Close the current drawing board page and return to the main interface;

2. File naming: Modify the current file name;

3. Save: Save the current file;

4. Save as: Save the current file as other common formats. The current version supports conversion of king, .cdx, .mol, .molv3000, .png formats;

5. Eraser: Erase the contents on the drawing board, long press to switch to the”Clear” tool

6. Color tool: Set up the color to the specified position of the chemical structure;

7. Alignment tool: Set up the alignment and stacking position for the specified chemical structure;

8. Box selection tool: Select all or part of the chemical structure for other operations; long press to switch to the “lasso” tool;

9. View properties: Click to view the chemical structure properties on the drawing board;

10. Copy tool: Copy/paste the selected chemical structure;

11.ACS1996 drawing standard: Click to switch the "ACS1996 drawing standard" format；

12. Cancellation: Cancel the previous operation;

13. Redo: Resume the previous step to cancel the operation;

14. Full Screen Tool: Click to enter or exit full screen.

Click on the [···] in the toolbar to see more tools.

15. Transfer IUPAC name to structure: Input IUPAC name can be automatically converted to the corresponding chemical structure;

16. Transfer structure to IUPAC name : Input chemical structure formula, converted into the corresponding IUPAC name by one button;

17. 3D mode translation: Click to convert the current chemical structure to 3D mode;

18. Grid line: Add grid line;

19. Share/Save button: Save the structure to your album in .Png format, or share the chemical structure with your friends;

20. Using Help: Click to view the using help;

21. Settings: Set up general functions of the drawing board;

Lower functional area – drawing tools area

(Slide the toolbar left and right to see more structure drawing tools)

The lower functional area is a collection of some common structural drawing tools -

Includes single bond, double bond, triple bond, arrow tool, solid wedge button, hollow wedge button, virtual wedge button, text tool, bold single button, long-chain tool, folded chain tool, cyclopropane template, cyclobutane template , cyclopentane template, cyclohexane template, cycloheptane template, cyclooctane template, cyclopentadiene ring template, benzene ring template, charge tool, flow chart tool, bracket tool.

Left functional area– elements selection area

The left side of the drawing board is a list of commonly used elements, which contains all the elements in the periodic table of elements.

Right functional area - common tool area

The right functional area includes 4 fast operation tools, as follows:-

1. Gesture drawing tool: Draw structure by gestures;

2.Group drawing tool: Click to add common group and support custom additions;

3. Beautify tool: Beautify structures intelligently, support repeatedly beautifying. Be careful with this move, you can use undo to recover your last move;

4. Move/Zoom tool: Two-finger move or zoom the drawing board;.
